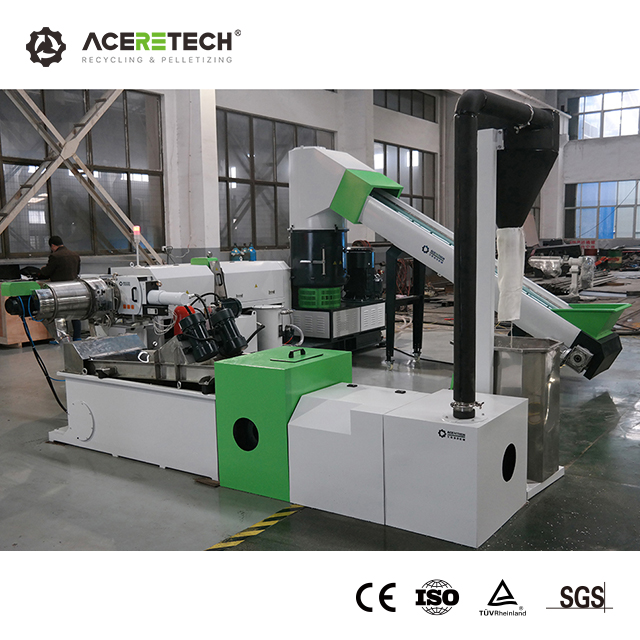

ACS-H Carbon Steel Waste Plastic Recycling Granulating Machine

To meet the market demand, ACERETECH developed and launched environmental 3 in 1 integrated plastic granulation recycling system--ACS-HTM COMPACTING AND PELLETIZING MACHINE.
Availability:
  • ACS-H
  • ACERETECH

ACS-H High Quality Pelletizer Machine

To meet the market demand, ACERETECH developed and launched environmental 3 in 1 integrated plastic granulation recycling system--ACS-HTM COMPACTING AND PELLETIZING MACHINE.

0001

It is different from traditional granulation line.This ACS-HTM smart plastic recycling pelletizing machine pays more attention to protecting the physical properties of environmental plastics, can maintain the plasticity, toughness and durability of the original environmental plastics as far as possible.

Materials Can Be Handled:

0002

Machine Working Process:

The equipment includes the belt conveyor/ hauling off feeding device, compactor, single screw extruder with double zone vacuum degassing system, filters, water-ring pelletzing system/ under-water pelletizing/ water strands pelletizing system/ under water strands pelletizing system, dryer, product silo and electric cabinet control system.

0003
With well understanding of characteristics of different plastic materials and modular design, ACS-HTM pelletizing machine optimizes size-reduction and pre-heating precess in the compactor, avoids over-heating or degradation. And with precise temperature control and optimized plasticization design, it ensures reliable quality of plastic granules.

Applicable Recycled Materials:

* PP/PE film/ industrial film/ post-cosumer film

* LDPE/HDPE bags

* Soft material

* PP woven bag

* PP non-woven/baby diaper non woven

* PVB film/flakes

* PET/Nylon PA6 PA66 film/fiber/filament/fiber cloth

* PP/PE/ABS/PS/PC flak

* EPS/XPS foam material/ Fish box foam material/ Package foam material

* ES/regrinds

Machine Parameter:

ACS-HTM series single-stage   compactor-granulator machine

Model

Compactor Volume   (L)

Compactor motor

Screw   diameter(mm)

L/D ratio

Power(kw)

Productivity(kg/h)

ACS-H300/80

300

37

80

42

45/55

160-220

ACS-H500/100

500

55

100

42

90/110

300-380

ACS-H800/120

800

90

120

42

132

450-500

ACS-H1000/140

1000

110

140

42

160/185

500-650

ACS-H1200/160

1200

132

160

42

220/250

800-1000

ACS-H1400/180

1400

160

180

42

315

1000-1200


0004 (1)

Feeding and Compaction

>>> A variety of intelligent feeding options are available.

Belt conveyors are available for plastic offcuts.

Coil edge material with optional coil traction device.

Feeding speed automatically.

>>> Powerful crushing and compaction device.

Rotating blades of the compactor will shred the incoming scrap.

Frictional heating dries and compacts the material.

Direct feeding from the compactor to the extruder.

Sliding door makes it possible to handle film and hard scrap.

0004 (2)

0005 (1)

Extrusion and Degassing

>>> Specialized single-screw extruders.

Equipped with high torque gearboxes of integrated design.

34D to 36D processing section for gentle melting of plastics.

Bimetallic screw and barrel ensure 2 times the usual service life.

>>> Dual-zone vacuum degassing system.

Dual-zone degassing for efficient removal of volatiles.

Equipped with vacuum tank for storing impurities, small molecules or oil stains in the exhaust gas.

0005 (2)

0006 (1)

Melt Filtration

>>> Plate type duplex filter.

Cost-effective and easy to operate.

>>> Piston type large area filter.

Suitable for heavy contaminated materials

Suitable for large capacity recycling machines.

>>> SCF type self-cleaning filter

No need to replace the screen.

Automatic discharge of impurities.

60 mesh, 80 mesh, 100 mesh, 120 mesh can be realized.

0006 (2)

0007 (1)

Pelletizing System

>>>For different materials and different usage scenarios, we can provide you with different pelletizing systems.

Water ring pelletizing systems.

Standard pelletizing method in ACS-H system.

Self-adjusting pelletizing head.

RPM of the rotating blades is automatic.



0007 (2)

0008 (1)

Pelletizing System

>>> Underwater pelletizing system.

Suitable for large capacity, automatic

wider range of applicable materials.




0008 (2)

0009 (1)

Pelletizing System

>>> Water drawing pelletizing system.

Cost effectiveness.

Suitable for materials with MFI more than 8.





0009 (2)

0010 (1)

Drying And Packaging System

>>> Vibration.

Screens made of stainless steel.

Dehydrated particles and selection of sizes.

Centrifugal dryer.

Horizontal, with low energy consumption.

Further removal of water by blowers on blowers.

Equipped with soundproof cover to reduce noise.

Product silos.

All pipes and silos wrapped with soundproof cotton.

Optional capacity online monitoring and quantitative weighing.

0010 (2)

0011 (1)

Smart Operation

>>> Smart Start: Only one button.

>>> Smart Stop: Only one button.

>>> Emergency Stop: Only one button.

Remote monitoring and information transmission.




0011 (2)0012
