APE Environmental Protection Plastic Pipe Extruder Machine Sale

1. We are a high-tech enterprise specializing in the development, production and sales of plastic extrusion lines and plastic production lines.
2. Our plastic extrusion lines are based on plastic extruders: single-screw extruder, conical twin-screw extruder and parallel twin-screw extrusion.
3. Our plastic manufacturing machines can manufacture various plastic products, such as: PVC pipes, CPVC pipes, PE/HPE/PE-RT pipes, PP-R pipes, plastic foam profiles, WPC profiles and panels, wood-plastic composites, etc.
4. Plastic extruder is widely used in plastic industry. It is the main component of plastic pipe extrusion line, plastic profile extrusion line, plastic recycling line and plastic pelletizing line.
5. We provide plastic machinery to manufacture agricultural pipes, pellet production machines, laminators and wooden window frame machines. Our machines can make 3D printer materials.
6. Our plastic extruders use high quality screws in plastic machinery. Our plastic machines have long life span.

Availability:


Inquire

Model: APE
Brand: ACERETECH

1. We are a high-tech enterprise specializing in the development, production and sales of plastic extrusion lines and plastic production lines.

2. Our plastic extrusion lines are based on plastic extruders: single-screw extruder, conical twin-screw extruder and parallel twin-screw extrusion.

3. Our plastic manufacturing machines can manufacture various plastic products, such as: PVC pipes, CPVC pipes, PE/HPE/PE-RT pipes, PP-R pipes, plastic foam profiles, WPC profiles and panels, wood-plastic composites, etc.

4. Plastic extruder is widely used in plastic industry. It is the main component of plastic pipe extrusion line, plastic profile extrusion line, plastic recycling line and plastic pelletizing line.

5. We provide plastic machinery to manufacture agricultural pipes, pellet production machines, laminators and wooden window frame machines. Our machines can make 3D printer materials.

6. Our plastic extruders use high quality screws in plastic machinery. Our plastic machines have long life span.

APE Environmental Protection Plastic Pipe Extruder Machine Sale

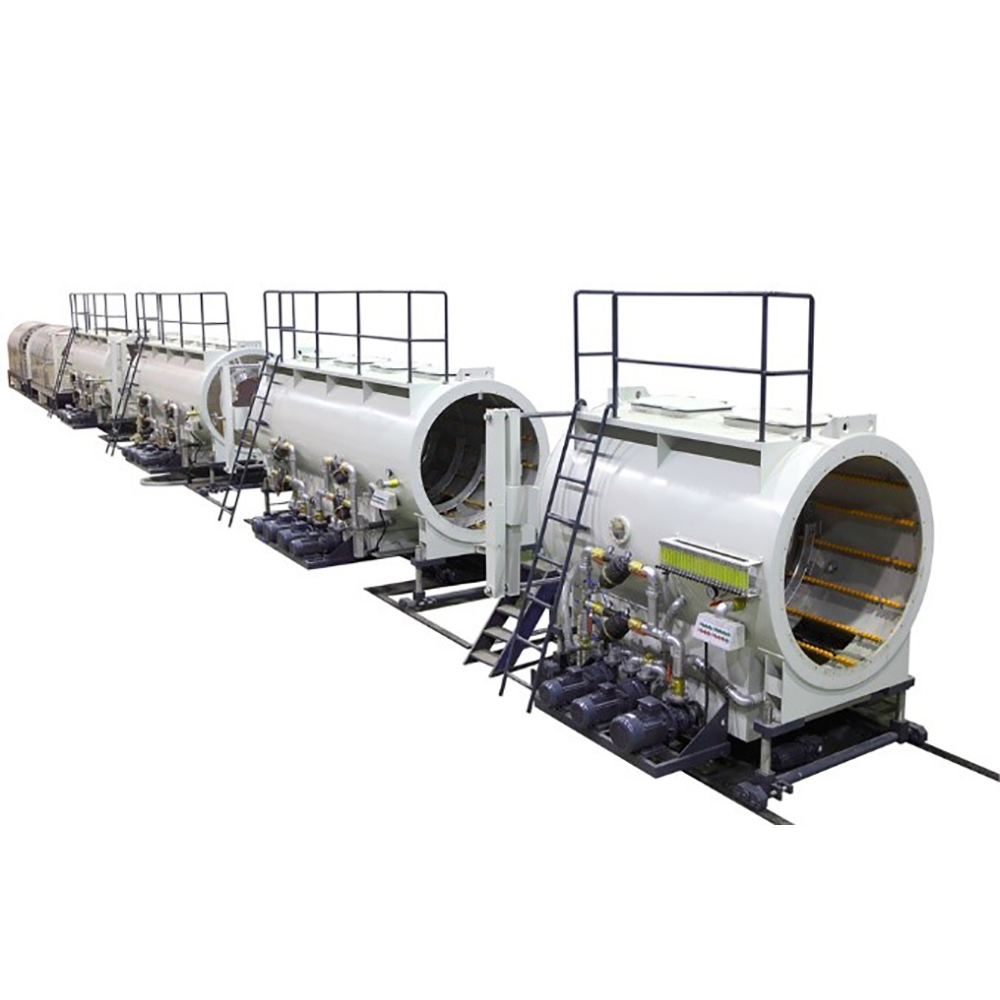

It is widely used in producing HDPE water supply pipes, gas supply pipes. It can make HDPE pipes with diameter from 16mm to 1600mm. With many years of plastic machinery development and design experience, this HDPE pipe extrusion line has the unique structure,the design is novel, the equipment entire line layout is reasonable, the control performance is reliable. By different requirement, this HDPE pipe line could be designed as multiply-layer pipe extrusion line.

Advantages
1. The extruder of HDPE pipe line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.

2. The basket composite machine head adapted for PE processing not only guarantees extrusion stability at high speed, but also realizes minimum stress and highest pipe quality in low temperature.

3. This PE pipe line is composed by material charger、Single screw extruder 、pipe mold、vacuum calibration tank、2sets spraying cooling tank 、three caterpillar haul-off machine、no-dust cutter、stacker.
4. The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes;spraying cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.

5. Adopt multi-pedal tractor to drive all pedals through central motor to get synchronous height and guarantees pipe roundness.With meter code, it can count the pipe length during the production. Cutting system adopt no-dust cutter with PLC control system.

6. The high-speed, precise designed cutting machine is low in noise. And it is also equipped with strong scrap attracting device to reduce the work of maintenance to the lowest degree.

Corrugated Drain Pipe Production Machine Extruder For Plastic Pipe Plastic Pipe Profile Extrusion Line Polythene Pipe Extrusion Machine Extruder Machine For Plastic Pipe Hdpe Pipe Extruder Plasti Pipe Extruder Environmental Protection Plastic Pipe Extruder Machine APE Plastic Pipe Extruder Machine Plastic Pipe Extruder Machine Sale

Product Category

FAQ

Related Products

APP Multi-Layer Plastic PE Promotional PVC Double Pipe Tube Extruder

Cheap PP PVC Pipe Automatic Extrusion Production Line

Diameter scope(mm)	Conical twin-screw extruder	Motor(KW)	Max.Capacity(KG/H)	Max. Lineal speed(m/min.)
16-40Dual	SJZ51/105	18.5 AC	120	10
20-63Dual	SJZ65/132	37 AC	250	15
20-63	SJZ51/105	18.5 AC	120	15
50-160	SJZ65/132	37 AC	250	8
63-200	SJZ65/132	37 AC	250	3.5
160-315	SJZ80/156	55 AC	350	3
75-160Dual	SJZ92/188	110 AC	800	6
315-630	SJZ92/188	110 AC	800	1.2
560-800	ATP130/26	160 DC	1100	1.3

Diameter scope(mm)	Conical twin-screw extruder	Motor(KW)	Max.Capacity(KG/H)	Max. Lineal speed(m/min.)
16-40Dual	SJZ51/105	18.5 AC	120	10
20-63Dual	SJZ65/132	37 AC	250	15
20-63	SJZ51/105	18.5 AC	120	15
50-160	SJZ65/132	37 AC	250	8
63-200	SJZ65/132	37 AC	250	3.5
160-315	SJZ80/156	55 AC	350	3
75-160Dual	SJZ92/188	110 AC	800	6
315-630	SJZ92/188	110 AC	800	1.2
560-800	ATP130/26	160 DC	1100	1.3
