AWS-HDPE Economic Bottle Plastic Recycle Machinery

In the field of HDPE/PP/LDPE recycling programs. Although the composition of HDPE-PP-LLDP varies in the same country, most of the material comes from municipal and industrial collection points of different sizes and with different composition of raw materials.
Availability:
  • AWS-HDPE
  • ACERETECH

AWS-HDPE Economic Bottle Plastic Recycle Machinery

In the field of HDPE/PP/LDPE recycling programs. Although the composition of HDPE-PP-LLDP varies in the same country, most of the material comes from municipal and industrial collection points with different sizes and different composition of raw materials.

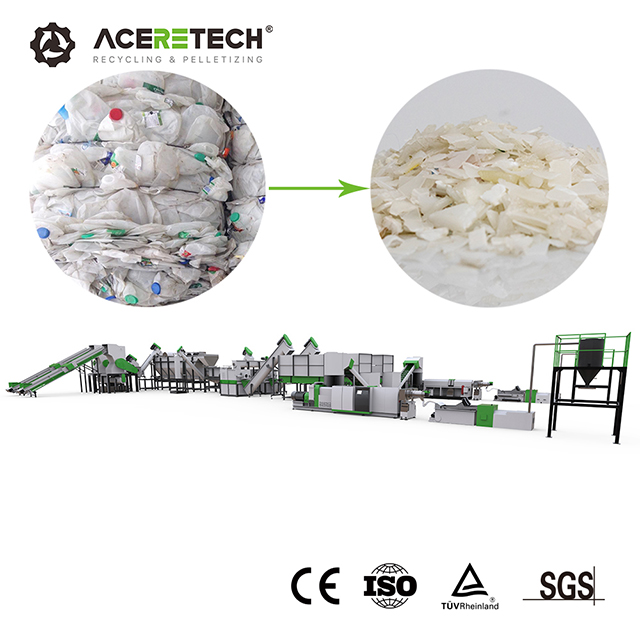

ACERETECH AWS-HDPE series recycling washing line is designed for recycling of daily use plastic products. By grading, crushing and washing, clean and reusable material can be obtained for downstream use.

The raw materials that can be processed by this system are HDPE/PP bottles and utensils, HDPE/PPP drums and boxes, and HDPE/PP rigid plastics for daily use.

The AWS series hard plastic (HDPE) recycling line has a capacity of 1000 kg/h to 4000 kg/h. The efficient processing technology can greatly improve the recycling efficiency.

1

Final products

清洗最终产品


Parameter

Size

Capacity

Motor Power

Equipment footprint

AWS-HDPE10

1000kg/h

150KW

150m 2

AWS-HDPE20

2000kg/h

190KW

260m 2

AWS-HDPE30

3000kg/h

250KW

380m 2

AWS-HDPE45

4000kg/h

400KW

450m 2

Unit Energy Consumption

Content

Average energy consumption per ton of bottle

Electricity

50-80KW

Water

0.8-1.5T

Compressed air

0.5-1m 3

Steam (optional)

0-100KG

Detergent (optional)

0-3KG


2

Belt conveyor (for feeding material)

For feeding material to the next machine (can be designed according to special requirements)


3

Single shaft shredder

*For reducing the size of plastic materials.

*35% more space for built-in hydraulic cylinders in the cutting chamber.

*Variable fast plunger movement.

* smaller footprint compared to conventional shredders with horizontal gates.

*Enclosed cutting chamber to prevent.


4

Belt conveyor (for discharge)

Sending the conveyor to the next machine.

L-shaped belt conveyor connected to Trommel.

Conveyor surrounded by a traction switch.


5

Crushers

* Optimized rotor and crushing chamber design reduces energy consumption and increases throughput.

*optimal rotor blades particularly suitable for heavy material crushing.

* precise clearance between the rotating and fixed knives and the design of the rotor ensure uniformity of particles and keep noise to a minimum.


6

Screw loader

*Conveyance of plastic flakes from the crusher to the friction washers.

* Parts in contact with water are made of SUS304.


7

Floating tank

For additional separation and cleansing of heavy contaminants with gravity > 1g/cm3 from plastic scraps, the material is pushed underwater to separate off the final heavy contaminants and discharge the material directly into the screw loader.level control via electronic feeler;


8

Friction Washer

* High speed special rotor, built in mild steel;

* Stainless screen with hole;

* Screen surface cleaning device by water spray nozzles;

* 1 set of water pump for water circulation.


9

Dewatering Machine

* Multi-purpose unit, will wash the remaining surface contaminants from material and simultaneously dry the plastic flakes;

* Subsequently the flakes will be centrifugally spun and dried;

* Humidity removal efficiency: not less than 98%;

* Washer/dryer housing built in stainless steel welded construction;

* Reinforces, mild circular screen size Φ2mm for higher washing/drying effect.


10

Pipe Drying System

With connecting pipes to the dryer;

Connecting pipes to the cyclone installed above the thermal dryer;

Parts in contact with material built in stainless steel.


11

Packaging System With Dust Remover

Storage silo for plastic flakes
