Bv Factory Plumbing Tube Extruding Lineplastic Tube Extruding Line

APP Multi-Layer Plastic PE Promotional PVC Double Pipe Tube Extruder

1. We are a high-tech enterprise specializing in the development, production and sales of plastic extrusion lines and plastic production lines.

2. Our plastic extrusion lines are based on plastic extruders: single-screw extruders, conical twin-screw extruders and parallel twin-screw extruders.

3. Our plastic manufacturing machines can manufacture a wide range of plastic products, such as: PVC pipes, CPVC pipes, PE/HDPE/PE-RT pipes, PP-R pipes, plastic foam profiles, WPC profiles and panels, wood-plastic composites, etc.

4. The plastic extruder is widely used in the plastic industry. It is the main component of plastic pipe extrusion lines, plastic profile extrusion lines, plastic recycling lines and plastic pelletizing lines.

5. We offer plastic machinery to make agricultural pipes, machines to produce pellets, laminators, wooden window frame machines. Our machines can make materials for 3D printers.

6. Our plastic extruders use high quality screws in plastic machinery. Our plastic machines have a long life span.

Product Parameters

Production line	Diameter range (mm)	Extruder type	Max. Capacity(kg/h)	Max. Haul off speed(m/min.)	Extrusion power (KW)
38D Series High Efficient Production Line
ATP-63Single	Ф20-63	ATD60/38	280	20	90
ATP-63Dual	Ф20-63	ATD60/38	360	18x2	110
ATP-110Single	Ф20-110	ATD60/38	280	20	90
ATP-110Dual	Ф20-110	ATD75/38	450	18x2	160
ATP-160Single	Ф40-160	ATD60/38	360	12	110
ATP-250Single	Ф50-250	ATD75/38	450	10	160
33D Series Classical Production Line
ATP-63Single	Ф20-63	SJ65/33	180	10	55
ATP-110Single	Ф20-110	SJ65/33	180	10	55
ATP-160Single	Ф50-160	SJ75/33	300	6	110
ATP-250Single	Ф90-250	SJ75/33	300	4	110

It is mainly used for the production of PP-R, PE pipes with a diameter of 16 mm to 160 mm and PE-RT pipes with a diameter of 16 to 32 mm. Equipped with suitable downstream equipment, multi-layer PP-R pipes, PP-R glass fibre pipes, PE-RT and EVOH pipes can also be produced. With many years of experience in plastic pipe extrusion, we have also developed a high speed PP-R/PE pipe extrusion line with a maximum production speed of 35m/min (based on 20mm pipe).

Advantages:
This pipe extrusion line adopt energy efficient single screw extruder with special mould, production efficiency than single high-speed production line increased by 30%, energy consumption lower than 20%, also effectively reduced labor costs. The production of PE-RT or PE pipes can be realized by the appropriate transformation of the machine.

The machine could adopt PLC control and color large screen liquid crystal display screen composed of control system, the operation is simple, linkage across the board, machine adjustment, automatic fault alarm, the whole line appearance, stable and reliable production.

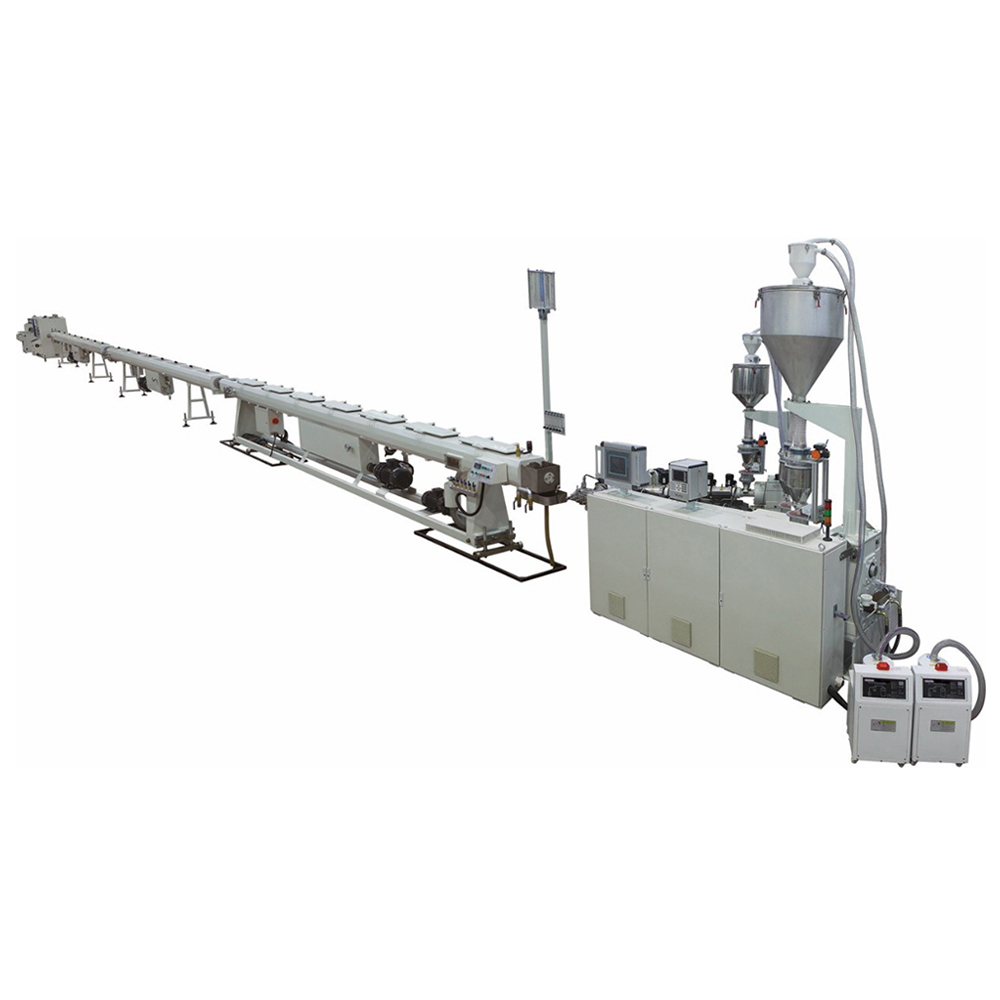

PP-R Pipe machine is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying, etc.purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
