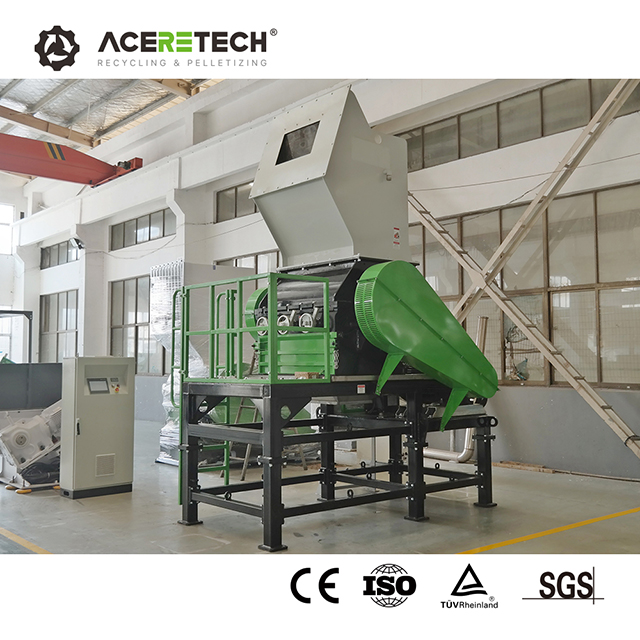

GF Economic Recycling Bottle Plastic Crusher

The GF series is a high efficiency, low energy consumption crusher designed for film, small hollow bottles and PET bottles. The crusher is equipped with a wide range of rotor models to choose from, depending on the characteristics of the material. Rotor diameters range from 500mm to 800mm.

Availability:
  • GF
  • ACERETECH

GF Economic Recycling Bottle Plastic Crusher

The GF series is a high efficiency, low energy consumption crusher designed for film, small hollow bottles and PET bottles. The crusher is equipped with a wide range of rotor models depending on the characteristics of the material. The rotor diameter ranges from 500mm to 800mm and the minimum width of the rotor is 700mm and the maximum width is 1600mm. It uses a special welding process for the entire steel structure to meet the need for fracture-resistant materials. The large rotor bearing, knife holder and rotor are combined with standard V-cut technology, which facilitates improved cutting and recovery efficiency and reduced dust content in the recovered material.

1

Application

GF series crushers have special cutting technology to recover a wide range of films, small hollow materials including injection mold parts, bottles, blow mold parts, films and other materials. The crushed flakes are homogeneous.

2

3

Technical specification

GF500/700

GF700/1000

GF700/1200

GF800/1600

Machine Weight(KG)

2500

3500

4200

6000

Machine dimension(mm)

2230x1630x3450

2530x1990x3600

2750x2230x3700

3150x2710x3900

Chamber size(mm)

500x700

700x1000

700x1176

800x1600

Power(kw)

45

75

90

160

Rotoary blades quantity

5x2

5x2/7x2

5x2/7x2

5x4/7x4

Stator blades quantity

2

2

2

2

Rotor diameter

500

700

700

800

Rotor width

700

1000

1200

1600


4

HARD WELDED STEEL BODY

>>ACERETECH crusher bodies are made of special high strength welded steel to prevent cracking and excessive stress damage to the housing during operation.






5

FEEDING

>>>The motor drive of the conveyor belt and the traction unit is coordinated with the abb inverter. The feeding speed of the conveyor belt or the drum traction speed is fully automatic.






6

EASY MAINTENANCE

>>The optimized crushing chamber, opened and closed with the help of hydraulic control, makes it easy to clean the inside of the crushing chamber and change parts quickly.





7

STABLE POWER SYSTEM

>>Drive motors and gearboxes adopt European brands, with high energy utilization efficiency and long-term stable operation.




8

EASY MAINTENANCE

>>The optimized crushing chamber, opened and closed with the help of hydraulic control, makes it easy to clean the inside of the crushing chamber and change parts quickly.



9

CUTTONG CHAMBER

>>Bolt-on steel construction with 2 positive and negative double-edged stator knives installed in the box for multiple regrinding and adjustment. The hinged screen frame facilitates the disassembly and installation of the screen, which can be installed and removed through a separate door without tools.



10
