Warm Service Attractive And Reasonable Price Pe Pp Pvc Plastic Pulverizer Machine
Applications
Pulverisers are suitable for the pulverisation of semi-rigid, brittle and impact resistant materials where a powdered product is required.
Particles with a size of 6-8 mm are fed through a vibrating screen into a rotating high speed serrated disc to produce the required powder product in the 300-1000 micron range, the final size being determined by the adjustable disc spacing. Typically used to pulverise LDPE, HDPE, UPVC, PC and various other plastics.
Design

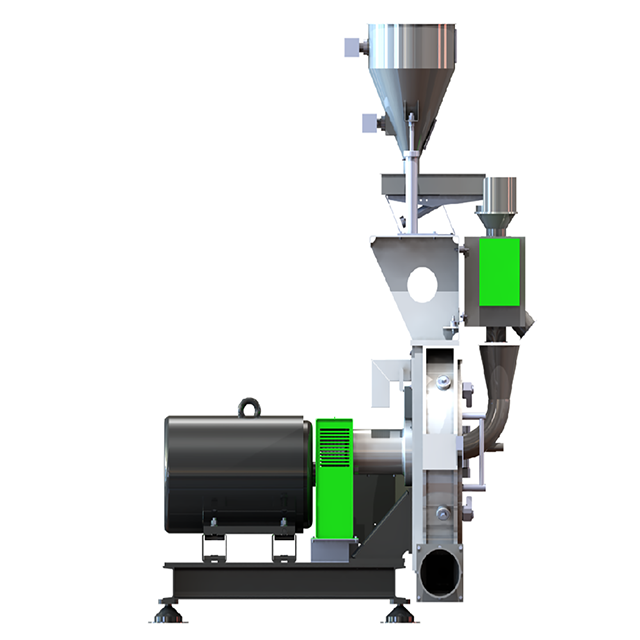

The PM300 shredder series is an ultra-high output unit that can be equipped with automatic temperature control. The material to be pulverised is fed centrally between the fixed and high-speed rotating pulverising discs, which have a centrifugal effect and allow the material to pass through the processing zone before being discharged pneumatically from the machine.
Advantages
* Long brake disc life between lubrication.
*Quick and easy disc change and adjustment.
*Low dwell time means low thermal stress on the process material.
*High throughput capacity.
*Economically efficient operation.
Final Products
Technical Features
* Dosing channel/Vibratory feeder
* The channel width is 100 - 250mm, and the storage container is appr. 50-100 lit.
* The feeding is regulated and consumed by the high current controller monitoring the pulverizer motor, including the mounting bracket and control device.
Pulverizer Housing
* Disc pulverizer with a fixed and a high-speed toothed disc with precision bearings.
* Material is fed through the opening in the center of the fixed disc.
* The size of the particles depends on the surface structure of the teeth and the adjustable distance between the tooth discs. The cutting clearance can be checked through the inspection hole in the housing. This makes it easy to adjust from the outside of the device using a feeler gauge. The device operates without a screen.
* The machine housing is made of fracture resistant welded steel. The hinged housing door with fixed toothed disc opens to the side for cleaning and replacing the toothed disc.
* The grinding chamber is well designed with a small cross-section and a flat, almost vertically mounted grinding disc.
* The material is clamped and reduced immediately after entering the grinding chamber.
Pulverizer Discs
* Specially designed discs and high-speed peripheral running speed ensure efficient impact reduction under low power requirements.
* Pulverizer disc diameter 300 m
Temperature Control
The enhanced cooling device for automatically controlling the temperature includes a nozzle for spraying in cooling water, regulating control devices, solenoid valves, thermostats, an automatic control device and a material feeding switch.
Drive And Mounting Frame
A flat steel structure is used to install the pulverizer and suction box. The drive motor includes "V" belt drive and belt guard. The frame is equipped with pre installed anti vibration pads.
Safety Devices
Integrated operational safety device to prevent entry until the rotor is completely stationary.
Product Parameters
| PM300 Series Pulverizer Machine | |
| Raw material | H-PVC-Profile ,H-PVC-Pine ,LDPE(MFI70) and etc. |
| Final product & capacity | 120~200kg/h, depends on condition of client's material. |
| Electric current | 3×380V, 50Hz; control current 220V, 50Hz |
| Model | PM300 |
| Profile- H-PVC | 200 kg/h |
| Pipe- H-PVC | 250 kg/h |
| PE | 120 kg/h |
| Rotor speed | 9000 rmp |
| Disc diameter | 300 mm |
| Tooth grooves | 2.62 |
| Drive motor | 22 kw |
| Blower capacity Q | 3500 cbm/h |
| Blower motor N | 7.5 kw |
