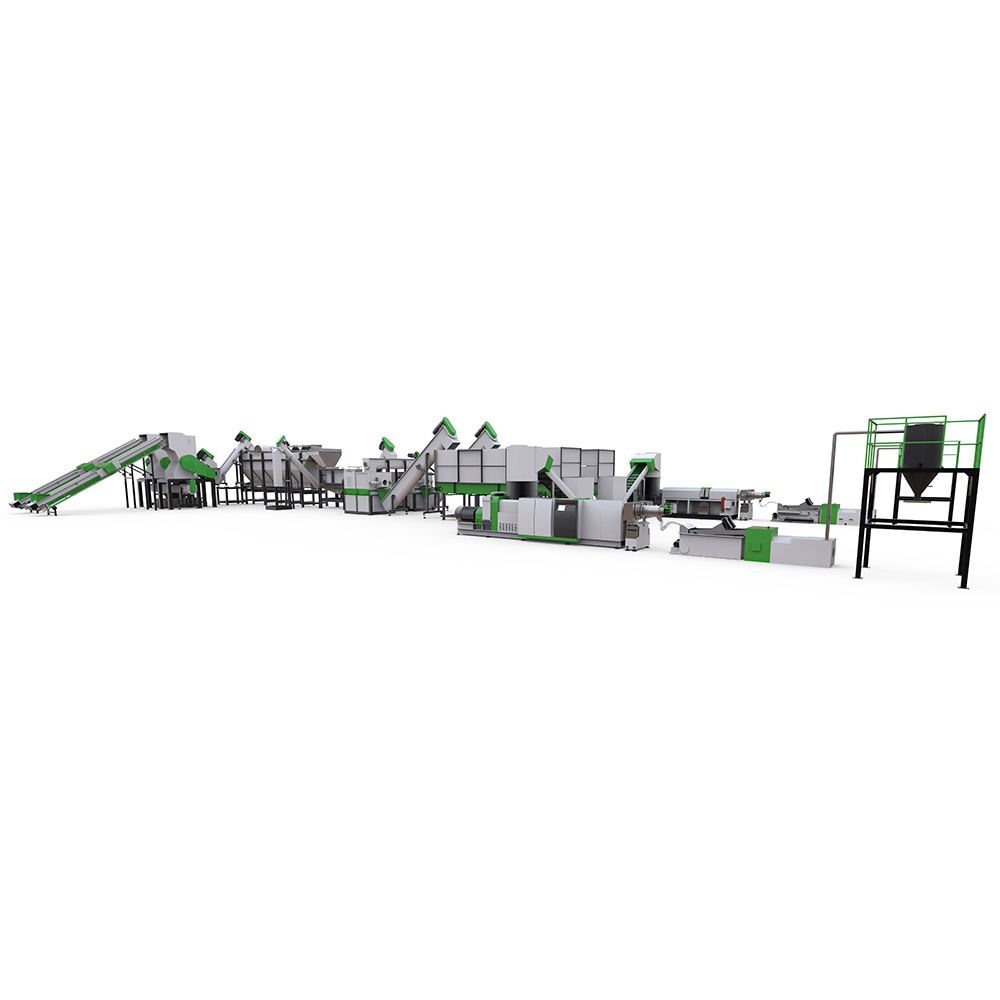

AWS-PET Pet Bottle To Bottle Recycling Line For Sale For Foaming Materials Recycling

PET waste bottles are dirty and must be rigorously cleaned to remove oil, dust and other debris before they are granulated.In addition, discarded PET bottles often come with attachments such as caps, labels, and bottom holders, as they are often made of PP/PE and other materials and are therefore not compatible with PET.Therefore, during the recycling and granulation of waste PET bottles, these accessories must be sorted separately.
Availability:
  • AWS-PET

  • ACERETECH

AWS-PET Pet Used Bottle Crushing Washing Drying Recycling Line With Technical Services

It is well known that PET bottle recycling is the most important part of plastic recycling today, and ACERETECH has been focusing on PET recycling research for many years.

Usually we have the following steps to deal with a complete PET bottle, sorting → crushing → washing → drying.

PET waste bottles are dirty and must be rigorously cleaned to remove oil, dust and other debris before they are granulated.In addition, discarded PET bottles often come with attachments such as caps, labels, and bottom holders, as they are often made of PP/PE and other materials and are therefore not compatible with PET.

Therefore, in the recycling and pelletizing process of waste PET bottles, these accessories must be sorted out separately.

Final products

清洗最终产品

Device parameters

Size

Capacity

Motor Power

Equipment footprint

AWS-PET10

1000kg/h

220KW

250m 2

AWS-PET20

2000kg/h

260KW

350m 2

AWS-PET30

3000kg/h

380KW

500m 2

AWS-PET40

4000kg/h

500KW

700m 2

Unit energy consumption

Content

Average energy consumption per ton of bottle

Electricity

70-90KW

Water

1-1.5T

Compressed air

0.5-1m3

Steam (optional)

250-400KG

Detergent (optional)

4-8KG

Bottle quality reference

Description

AA(ppm)

A(ppm)

PVC content

≤25

≤100

PE/PP/colored bottle/metal/other

≤75

≤100

Total impurity

≤100

≤200


Bottles and sorting system

Advanced use PET particles require precise recycling solutions.In the pretreatment of the front end, we choose high quality bottles.Remove sand, wood, and other impurities.

2

1

Crusher

Higher production and lower power consumption due to the optimal geometry of the rotor and cutting chamber;

Optimal rotor tool installation for heavy duty applications and high cutting power;

Cut quality is better (particle shape) and noise levels are lower due to precise cut clearance and optimal rotor design.

3

Washing line

The ACERETECH cleaning process includes preconditioning, caustic cleaning, and thermal cleaning to ensure optimal availability of clean sheets for high quality applications (fibers, films, injection molds).

Using ACERETECH cleaning technology, the cleaning effect is excellent.

--Pre-washing

--Caustic cleaning with caustic renewal

--Multi-stage post-washer

--Drying

--Automatic waste management system reduces the operator’s work

--Separation of labels and caps using a float-sink separation system and sifter

4

5
