A Washing Line for Plastic Waste May Consist of

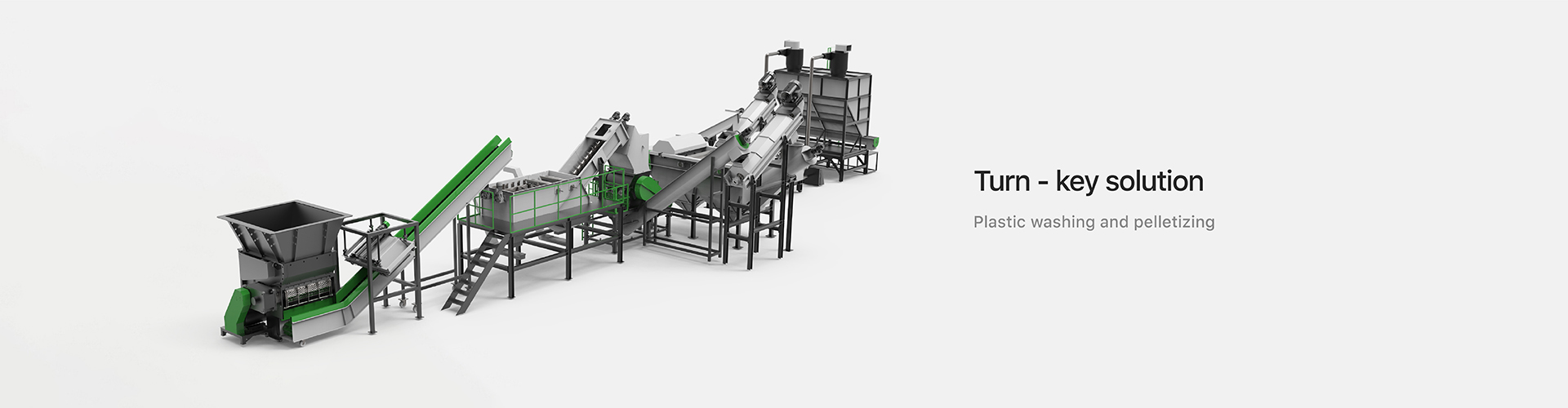

A plastic washing line is a comprehensive system that encompasses various stages of plastic waste recycling, including sorting, shredding, washing, and drying. It is an automated setup that optimizes the recycling process, allowing for the efficient cleaning and preparation of different types of plastic materials. Let's delve into the key features and working principles of a plastic washing line.

Features of a Plastic Washing Line

  • Sorting and Segregation: A plastic washing line incorporates a sorting mechanism that separates different types of plastic waste based on their composition and color. This step ensures that the recycling process is carried out with precision, as different plastics require specific treatment methods.

  • Shredding and Size Reduction: Once the plastic waste is sorted, it undergoes a shredding process, where it is broken down into smaller pieces. This step increases the surface area of the plastic, facilitating the subsequent washing process. Size reduction also helps in optimizing the efficiency of downstream equipment.

  • Washing and Cleaning: The heart of a plastic washing line lies in its washing and cleaning capabilities. This stage involves the removal of contaminants such as dirt, labels, adhesives, and other impurities from the plastic waste. The washing process typically utilizes water, detergents, and friction to dislodge and eliminate these unwanted elements.

  • Separation and Filtration: After the washing phase, the plastic waste is subjected to separation techniques to remove any remaining impurities. Filters and centrifugal systems are commonly employed to achieve this. The separation process ensures that only clean and pure plastic flakes or pellets move forward in the recycling process.

  • Drying and Dehydration: Once the plastic material is thoroughly cleaned and separated, it needs to be dried before further processing. Drying can be accomplished through various methods such as hot air drying or centrifugal drying. Efficient drying is crucial to prevent the growth of bacteria or mold during storage and transportation.

Working Principle of a Plastic Washing Line

  • Feeding and Pre-Sorting: Plastic waste is fed into the washing line, where it undergoes pre-sorting to remove any large or non-plastic items such as metals or stones.

  • Shredding and Crushing: The pre-sorted plastic waste is then shredded into smaller pieces by powerful shredding machines. The shredded plastic is further crushed to achieve the desired size for effective washing.

  • Washing and Friction: The shredded plastic enters a washing chamber, where it is mixed with water and detergent. Friction is applied to the plastic through mechanical means like high-speed rotating paddles or agitators, ensuring thorough cleaning.

  • Floating and Sinking: In some cases, a density separation technique is employed to separate plastic materials of different densities. This process allows the heavier contaminants to sink, while the lighter plastic flakes float, facilitating their removal.

  • Centrifugation and Drying: The washed plastic flakes are then subjected to centrifugation, where excess water is removed. Subsequently, the plastic is dried using hot air, ensuring that it is moisture-free and ready for further processing.

  • Packaging and Storage: Finally, the clean plastic flakes or pellets are packaged and prepared for resale or sent to downstream processes for recycling into various plastic products.

The Importance of Plastic Washing Lines in Recycling

  • Enhanced Efficiency: By automating the recycling process, plastic washing lines significantly improve the efficiency of plastic waste management. They enable large volumes of plastic waste to be processed in a relatively short time, reducing the burden on landfills and the environment.

  • High-Quality Output: The thorough cleaning and separation mechanisms employed by plastic washing lines result in high-quality plastic flakes or pellets. These clean materials can be used for various applications, including the manufacturing of new plastic products.

  • Resource Conservation: Plastic washing lines contribute to resource conservation by recycling plastic waste into valuable raw materials. This reduces the demand for virgin plastic production, which requires the extraction of fossil fuels and consumes significant energy.

  • Pollution Mitigation: By effectively removing contaminants from plastic waste, washing lines help mitigate pollution caused by plastic materials. Cleaned plastics are less likely to end up in landfills or oceans, reducing the environmental impact of plastic waste.
