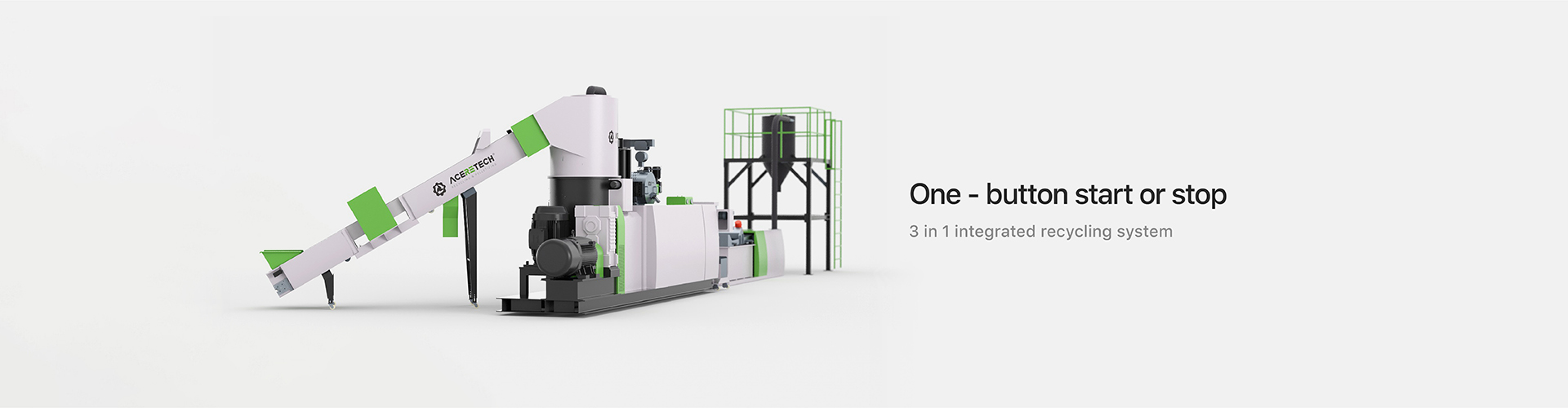

What is a Plastic Pelletizing Machine?

A plastic pelletizing machine, also known as a plastic granulator, is a specialized piece of equipment designed to convert plastic waste into small, uniform pellets. These machines are a crucial component of plastic recycling plants, enabling the efficient processing and reuse of plastic materials.

Working Principle of Plastic Pelletizing Machines

The working principle of a plastic pelletizing machine revolves around the extrusion process. The machine utilizes advanced granulation equipment to transform plastic waste into polymer pellets. The process typically involves the following steps:

  • Feeding: Plastic waste, such as discarded bottles, containers, or film, is fed into the pelletizing machine. The waste plastic is sorted, cleaned, and shredded into smaller pieces to facilitate the subsequent processing.

  • Melting and Extrusion: The shredded plastic enters the extruder, where it undergoes melting and compounding. Inside the extruder, a combination of heat, pressure, and mechanical mixing ensures the plastic is thoroughly melted and homogenized.

  • Formation of Strands: Once the plastic is melted, it is forced through a die, which has small holes or slits. The molten plastic is extruded through these openings, forming long, continuous strands.

  • Pelletization: The strands are then rapidly cooled using either water or air, causing them to solidify. As the strands exit the cooling system, they are cut into small, cylindrical pellets of uniform size using a pelletizer, which may employ various cutting mechanisms.

Main Features of Plastic Pelletizing Machines

Plastic pelletizing machines come in various designs and configurations, but they generally share several key features that contribute to their efficiency and effectiveness in the recycling process. These features include:

  • Robust Construction: Pelletizing machines are built to withstand the demanding conditions of continuous operation. They are constructed from durable materials, such as stainless steel, to ensure longevity and resistance to corrosion.

  • High-Quality Cutting System: The cutting system of a plastic pelletizing machine is a critical component that determines the uniformity and quality of the resulting pellets. Advanced machines employ precision cutting mechanisms to achieve consistent pellet size and shape.

  • Efficient Cooling System: Effective cooling is essential for solidifying the molten plastic strands and preventing deformation. Pelletizing machines are equipped with efficient cooling systems that rapidly cool the strands, ensuring the production of solid, well-formed pellets.

  • Automation and Control: Modern plastic pelletizing machines often incorporate advanced automation and control systems. These systems enable precise regulation of process parameters, such as temperature, pressure, and cutting speed, resulting in optimal pellet production and reduced operator intervention.

Use of Plastic Pellets

Plastic pellets produced by pelletizing machines have a wide range of applications across various industries. Some common uses of plastic pellets include:

  • Injection Molding: Plastic pellets are widely used in injection molding processes to manufacture a variety of plastic products, including packaging materials, automotive components, toys, and household items. The pellets are melted and injected into molds, allowing for the production of complex shapes with high precision.

  • Extrusion: Plastic pellets can be used in extrusion processes to create plastic films, sheets, pipes, and profiles. The pellets are melted and forced through a die, resulting in continuous plastic products of desired shapes and dimensions.

  • 3D Printing: With the growing popularity of 3D printing, plastic pellets are increasingly used as a feedstock for filament production. These filaments can be used in 3D printers to create a wide range of objects, from prototypes to intricate designs.

  • Composite Manufacturing: Plastic pellets can be incorporated into composite materials, enhancing their strength, durability, and other mechanical properties. The pellets are mixed with other materials, such as fiberglass or carbon fiber, to create composite products used in industries like construction, aerospace, and automotive.
