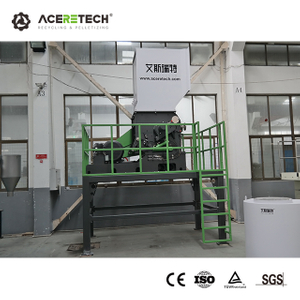

The GF series is a high efficiency, low energy consumption crusher designed for film, small hollow bottles and PET bottles. The crusher is equipped with a wide range of rotor models to choose from, depending on the characteristics of the material. Rotor diameters range from 500mm to 800mm.
Availability: | |
---|---|
Reliable Supplier Pet Bottles Plastic Crushing Machines For Sale
The GF series is a high efficiency, low energy consumption crusher designed for film, small hollow bottles and PET bottles. The crusher is equipped with a wide range of rotor models depending on the characteristics of the material. The rotor diameter ranges from 500mm to 800mm and the minimum width of the rotor is 700mm and the maximum width is 1600mm. It uses a special welding process for the entire steel structure to meet the need for fracture-resistant materials. The large rotor bearing, knife holder and rotor are combined with standard V-cut technology, which facilitates improved cutting and recovery efficiency and reduced dust content in the recovered material.
Application
GF series crusher has special cutting technology to recycle various film, small hollow material, including injection mold parts, bottles, blow mold parts, films and other materials. The crushed flakes are uniform.
Reliable Supplier Pet Bottles Plastic Crushing Machines For Sale
The GF series is a high efficiency, low energy consumption crusher designed for film, small hollow bottles and PET bottles. The crusher is equipped with a wide range of rotor models depending on the characteristics of the material. The rotor diameter ranges from 500mm to 800mm and the minimum width of the rotor is 700mm and the maximum width is 1600mm. It uses a special welding process for the entire steel structure to meet the need for fracture-resistant materials. The large rotor bearing, knife holder and rotor are combined with standard V-cut technology, which facilitates improved cutting and recovery efficiency and reduced dust content in the recovered material.
Application
GF series crusher has special cutting technology to recycle various film, small hollow material, including injection mold parts, bottles, blow mold parts, films and other materials. The crushed flakes are uniform.
Technical specification | GF500/700 | GF700/1000 | GF700/1200 | GF800/1600 |
Machine Weight(KG) | 2500 | 3500 | 4200 | 6000 |
Machine dimension(mm) | 2230x1630x3450 | 2530x1990x3600 | 2750x2230x3700 | 3150x2710x3900 |
Chamber size(mm) | 500x700 | 700x1000 | 700x1176 | 800x1600 |
Power(kw) | 45 | 75 | 90 | 160 |
Rotoary blades quantity | 5x2 | 5x2/7x2 | 5x2/7x2 | 5x4/7x4 |
Stator blades quantity | 2 | 2 | 2 | 2 |
Rotor diameter | 500 | 700 | 700 | 800 |
Rotor width | 700 | 1000 | 1200 | 1600 |
Technical specification | GF500/700 | GF700/1000 | GF700/1200 | GF800/1600 |
Machine Weight(KG) | 2500 | 3500 | 4200 | 6000 |
Machine dimension(mm) | 2230x1630x3450 | 2530x1990x3600 | 2750x2230x3700 | 3150x2710x3900 |
Chamber size(mm) | 500x700 | 700x1000 | 700x1176 | 800x1600 |
Power(kw) | 45 | 75 | 90 | 160 |
Rotoary blades quantity | 5x2 | 5x2/7x2 | 5x2/7x2 | 5x4/7x4 |
Stator blades quantity | 2 | 2 | 2 | 2 |
Rotor diameter | 500 | 700 | 700 | 800 |
Rotor width | 700 | 1000 | 1200 | 1600 |
HARD WELDED STEEL BODY
>>ACERETECH crusher bodies are made of special high strength welded steel to prevent cracking and excessive stress damage to the housing during operation.
FEEDING
>>>The motor drive of the conveyor belt and the traction unit is coordinated with the abb inverter. The feeding speed of the conveyor belt or the drum traction speed is fully automatic.
EASY MAINTENANCE
>>> Optimized crushing chamber, with help of the hydraulic controlling open and close, it’s easy to clean the inner chamber and rapidly replace parts.
STABLE POWERTRAIN
>>> The drive motor and gear box are of European brands, with high efficiency of energy utilization for long-term stable running.
EASY MAINTENANCE
>>> Optimized crushing chamber, with help of the hydraulic controlling open and close, it’s easy to clean the inner chamber and rapidly replace parts.
CUTTING CHAMBER
>>> Bolt connection steel structure, 2 positive and negative double-edged stator knives are installed in the box, which can be reground and adjusted multiple times. The hinged screen frame is convenient for disassembly and assembly of the screen, and can be installed and removed through a separate door without tools.
HARD WELDED STEEL BODY
>>ACERETECH crusher bodies are made of special high strength welded steel to prevent cracking and excessive stress damage to the housing during operation.
FEEDING
>>>The motor drive of the conveyor belt and the traction unit is coordinated with the abb inverter. The feeding speed of the conveyor belt or the drum traction speed is fully automatic.
EASY MAINTENANCE
>>> Optimized crushing chamber, with help of the hydraulic controlling open and close, it’s easy to clean the inner chamber and rapidly replace parts.
STABLE POWERTRAIN
>>> The drive motor and gear box are of European brands, with high efficiency of energy utilization for long-term stable running.
EASY MAINTENANCE
>>> Optimized crushing chamber, with help of the hydraulic controlling open and close, it’s easy to clean the inner chamber and rapidly replace parts.
CUTTING CHAMBER
>>> Bolt connection steel structure, 2 positive and negative double-edged stator knives are installed in the box, which can be reground and adjusted multiple times. The hinged screen frame is convenient for disassembly and assembly of the screen, and can be installed and removed through a separate door without tools.
