Waste Plastic Recycling Machinery VOC Dehumidification And Drying System

Plastic Compounding Pelletizing Line With Deodorization System

VOC dehumidification and drying systems

The modified granulated raw material is transported to the VOC homogenising and deodorising bin by negative pressure and the deodorising temperature is adjusted to a suitable state. At the same time, the raw material in the VOC homogenising and deodorising bin is continuously milled and homogenised to achieve the effect of homogenising and deodorising.

VOC Deodorization Drying Tower

Equipment Features:

For diffusing hot air into the holding drum for deodorizing raw materials.

The barrel structure conforms to the principle of fluid mechanics, allowing the air to diffuse evenly and completely remove odours.

Bottom-blowing air inlet design, which reduces the temperature difference between the top and bottom and enhances the deodorising effect.

The inlet system is equipped with a cut-off suction box to effectively clean the pipes and avoid blockage.

Overheating protection device to reduce accidents caused by human or mechanical failure.

Precision temperature controller, D.P..

special PLC programming, VOC homogenisation and deodorisation time sufficient for deodorisation time.

Cooling Silo:

Equipment Features:

The material is used for the cooling of raw materials;

The barrel is made of s30408 material, easy to clean and avoid corrosion;

Transparent visible material window, convenient to check the raw materials in the barrel;

With cone diffuser, the cooling efficiency is higher;

The height of the discharge port from the ground can be made according to the height specified by the customer;

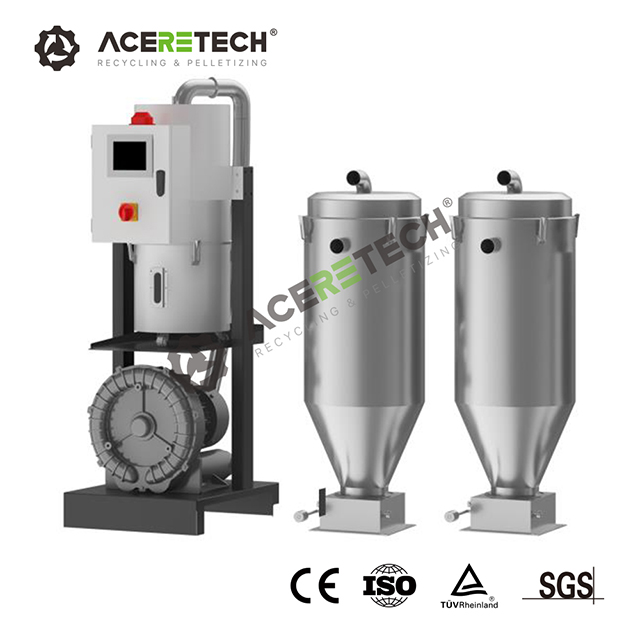

Homogenizing conveying system

Equipment Features:

It is used for conveying granular materials;

Open mold casting is increased at the discharge port of the vacuum hopper to prevent bridge blocking and stable transportation;

The design of two-stage cyclone dust collector and enlarged filter barrel is convenient and quick to maintain;

Equipped with vacuum breaking valve to protect the fan [above 5.5kW];
